Compatibility:
-
Fits: 2023.5 CVO & 2024–Newer Harley-Davidson Touring models ONLY
-
Does Not Fit:
-
2023 and older models
-
2024+ Road King models
-
2024+ Trike models
-
Overview:
The Skully Customs Handlebar Grip Switch is a sleek, billet aluminum control unit designed to work with most air ride systems that use electric switches. Ideal for controlling air suspension or an MRI electric center stand (with additional relay), this unit provides a clean, integrated control solution directly on your handlebars.
Key Features:
-
Machined from 6061 billet aluminum
-
Weatherproof push buttons
-
Available in multiple finishes
-

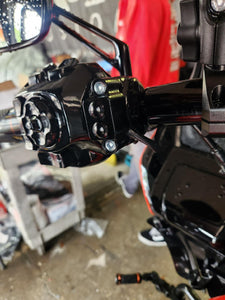

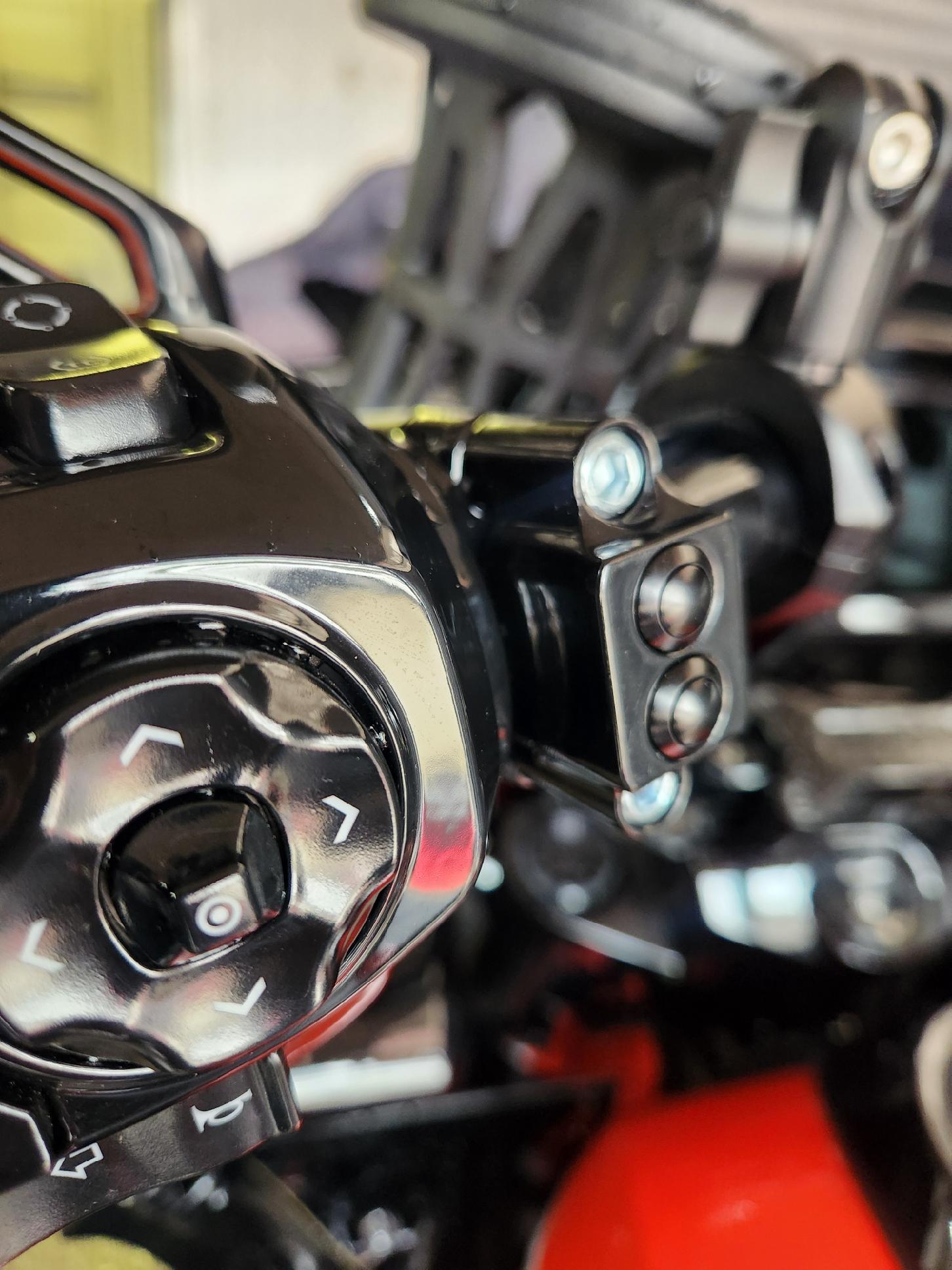

Fits either left or right side of handlebar
-

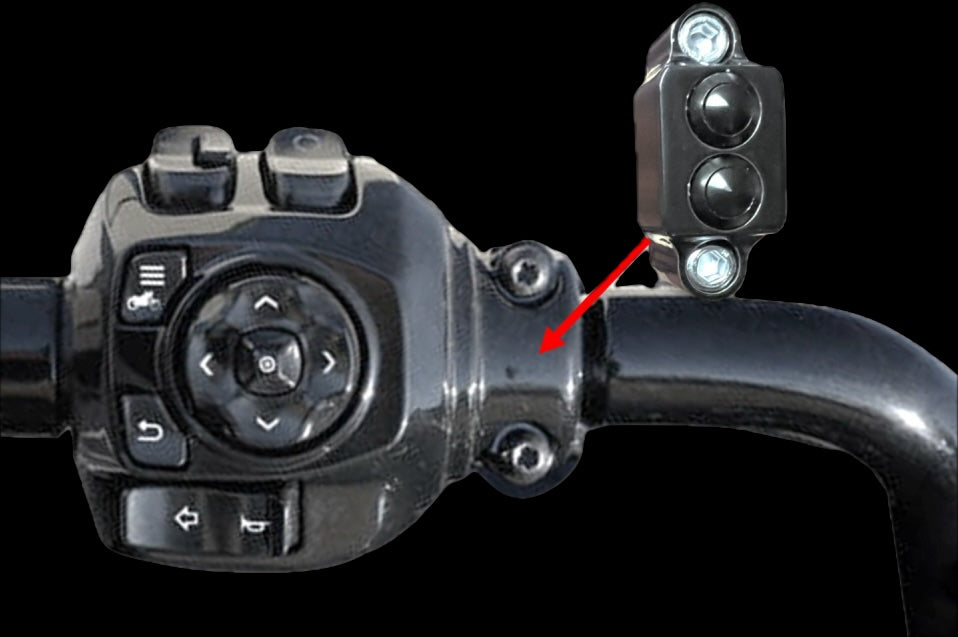

Overlays factory hand control housing clamp (OEM-style clamp for clutch or brake side)
-
Includes longer mounting bolts for easy installation
-
Compatible with any diameter handlebar using OEM Harley-Davidson controls
Functionality:
-
Each push button controls either the Up or Down function of your air ride system
-
For rear-only air systems, only one switch unit is needed
-
For front and rear systems, two units are required—one on each side
-
To use with an MRI electric center stand, a relay system must be installed to reverse polarity and enable full control
Wiring:
-
Hardwired with 69" leads
-
Three-wire configuration:
-
Blue: 12V+ power
-
Black: Up
-
Green: Down
-
-
Multiple wire exit notches in housing
-
Wires must be routed externally; ensure no pinching during installation
Power Requirements:
-
Connect to a fused circuit that is active only when the bike is on
-
If connecting to a constant 12V+ source, add a 5A fuse to the blue power wire
